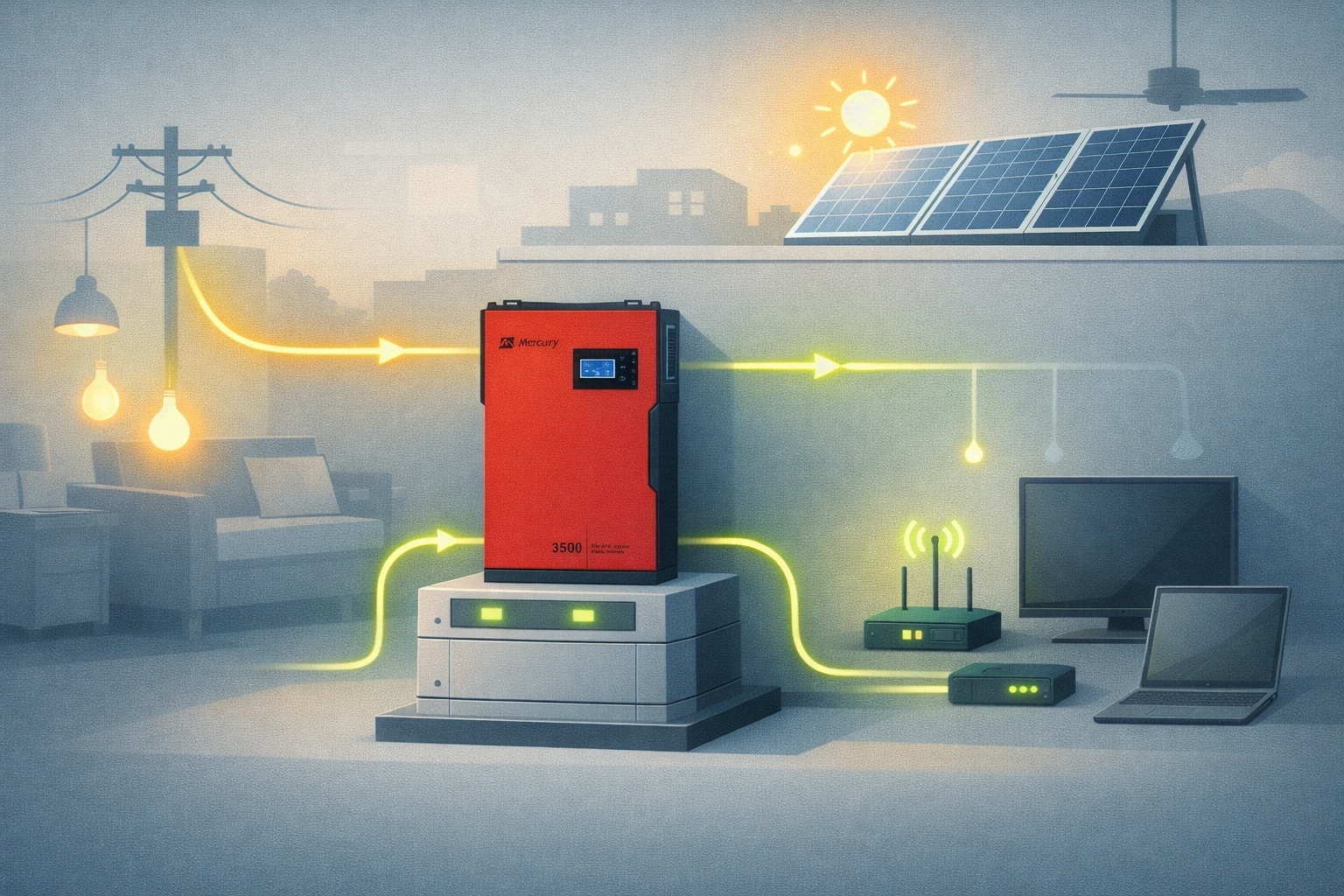

LOAD CAPACITY ANALYSIS

With Band A tariffs now exceeding ₦225/kWh in many Nigerian states, understanding the precise load capacity of your backup power system is no longer optional — it is essential financial planning. A 3.5kVA inverter rated at power factor 1.0 (PF 1.0) delivers the full 3,500 watts of usable power. This is a critical distinction: many competing inverters are rated at PF 0.8, meaning a 3.5kVA unit only delivers 2,800W. With a PF 1.0 system like the Mercury 3500, you get every watt you paid for. Not sure which inverter size is right for you? Start with our Inverter Buying Guide Nigeria 2025.

In a typical 2025 Nigerian residential setup, a 3.5kVA PF 1.0 inverter comfortably supports the following loads running at the same time:

• Lighting: 15–20 LED Bulbs (10W each) = 150–200W
• Cooling: 4–5 Ceiling Fans (75W each) + 1HP Inverter AC in economy mode = 575–875W
• Refrigeration: 1 Medium Fridge (150W) + 1 Deep Freezer (200W) = 350W
• Entertainment: 2 LED TVs (120W) + Decoder (30W) + Sound System (50W) = 200W
• Other: Phone chargers, laptop, Wi-Fi router = 80–120W

Total simultaneous draw: approximately 1,355W to 1,745W — well within the 3,500W limit, leaving over 1,700W of headroom for compressor startup surges. This is the real-world comfort zone for a typical Nigerian household during NEPA outages. You are not running at the edge of capacity; you have breathing room. The overload protection on the Mercury 3500 kicks in at 110%–150% load for 10 seconds, giving you a safety buffer even if someone plugs in an unexpected appliance.

SURGE POWER: WHY IT MATTERS FOR FREEZERS AND ACs

Every motor-driven appliance — freezers, ACs, pumping machines — draws 2–3 times its running wattage the moment it starts. This is called surge or starting wattage, and it is the number one reason inverters trip unexpectedly in Nigerian homes. This is also why a pure sine wave inverter is essential for running compressor-based appliances — modified sine wave units cannot handle these surge loads cleanly.

The Mercury 3500 handles surge capacity of 2× rated power (7,000W) for 5 seconds. This means your deep freezer's compressor startup spike of 600–800W and your 1HP AC's startup spike of 1,800–2,400W are absorbed without triggering overload protection. However, you should avoid starting multiple heavy appliances at exactly the same time. Stagger your AC and freezer startups by at least 10 seconds.

COMPLETE APPLIANCE WATTAGE GUIDE

Key: ✅ YES = safe to run alongside other loads. ⚠️ ALONE ONLY = can run on the inverter but not simultaneously with other heavy appliances. ❌ NO = exceeds rated capacity, do not attempt.

BATTERY CONFIGURATION & BACKUP TIME

The Mercury 3500 operates on a 24V DC system, which means you need two 12V deep-cycle batteries connected in series. This is simpler and more affordable than 48V systems that require four batteries. The built-in 80A AC charger ensures fast recharge times when NEPA or generator power is available.

Here are realistic backup time calculations based on common load scenarios with Mercury 200Ah batteries:

Formula: Backup Time (hours) = (Battery Voltage × Ah Capacity × Depth of Discharge) ÷ (Load in Watts ÷ Inverter Efficiency). We use 50% depth of discharge to protect battery lifespan and 93% inverter efficiency per the Mercury 3500 spec sheet. Use our Battery Backup Time Calculator to run your own numbers with your exact load.

Pro tip: Gel and tubular batteries handle deep discharge better than standard flooded batteries. The Mercury 200Ah Gel or Tubular series are purpose-built for inverter cycling and will deliver consistent backup times across 1,500+ charge cycles. Learn more about choosing the best battery for your inverter and how to extend your battery lifespan by up to 50%.

SOLAR INTEGRATION

The Mercury 3500 includes a built-in MPPT solar charge controller — no separate charge controller needed. It accepts up to 5,000W of solar panels with an MPPT voltage range of 120V–450Vdc and maximum open circuit voltage of 500Vdc. For a typical Nigerian installation, 4–6 panels of 450W monocrystalline solar panels in series will keep your batteries topped up during the 5–6 peak sun hours available across most of Southern Nigeria. This means your batteries can recharge fully from solar alone during the day, drastically reducing your dependence on DISCO power or generator diesel.

The system also supports configurable AC/Solar charger priority via the LCD panel. Set it to "Solar First" mode, and the inverter will draw from your panels before touching grid power — effectively making your DISCO bill approach zero during sunny months. When your panels produce more than your load requires, the excess goes straight to battery charging. When the sun drops, the system seamlessly switches to grid or battery power with a transfer time of just 10 milliseconds in UPS mode. For detailed setup instructions, refer to the Mercury 3.5kVA and 5.5kVA User Manual.

Combined solar and AC charging current reaches up to 100A, so even on cloudy days with partial grid availability, recharge times stay short. A fully depleted 200Ah battery bank can be restored in approximately 5–6 hours with solar and grid charging working together.

3.5KVA vs 5.5KVA: WHICH DO YOU NEED?

If your total load stays under 2,500W and you are running a single AC unit, the 3.5kVA (24V) is the smarter buy — fewer batteries, lower upfront cost, and identical build quality. A complete Mercury 3500 system with 2 × 200Ah batteries and 4 solar panels can be installed and running within the same day of purchase for Lagos customers.
