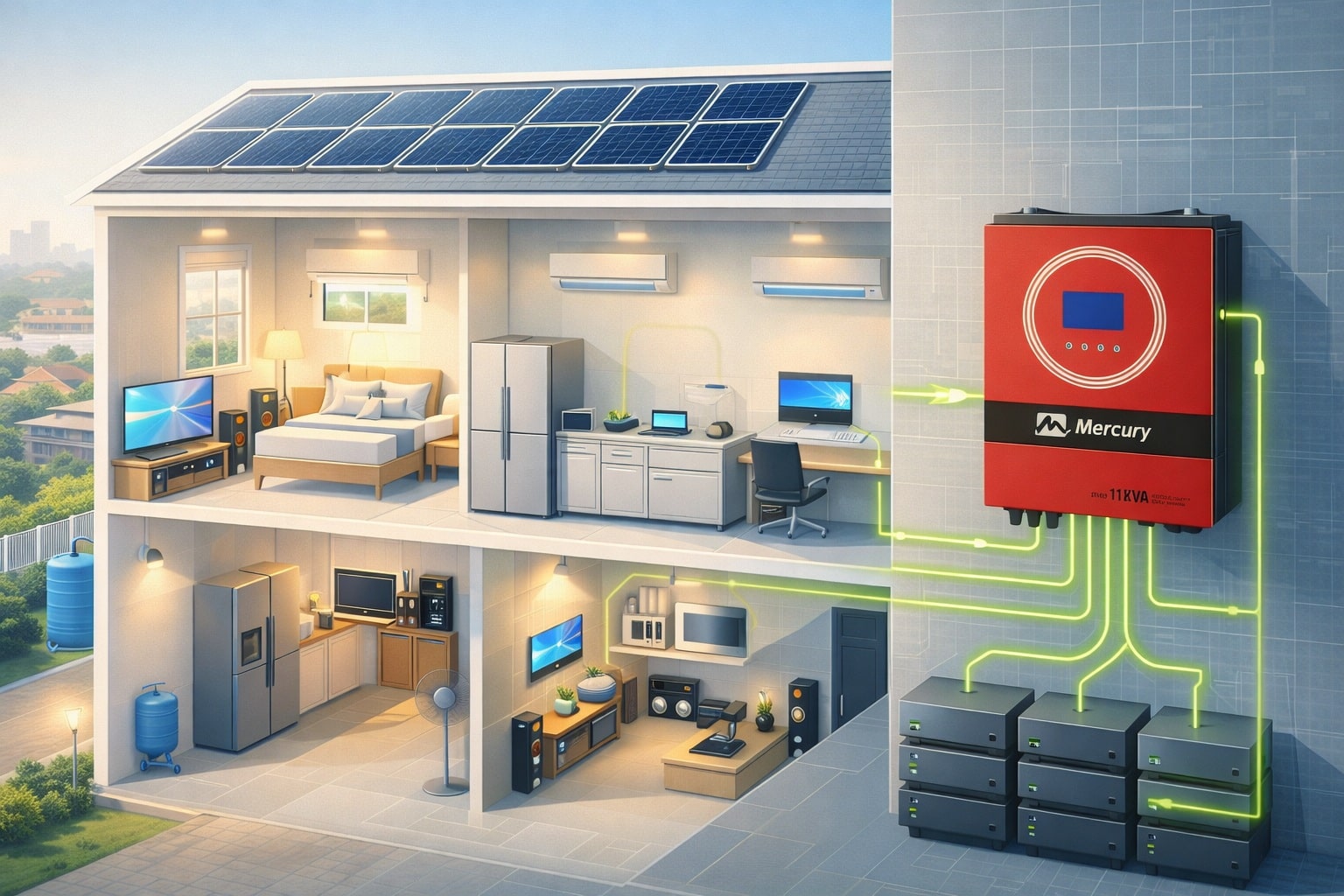

When assessing what can 11kVA inverter power, one must move beyond simple wattage addition and evaluate the electrical characteristics of the load profile against the inverter’s power factor, surge duration capability, and thermal dissipation limits. An 11kVA system represents a critical threshold in residential and commercial power backup, bridging the gap between standard household setups and industrial 3-phase infrastructure. In the context of the Nigerian energy landscape, specifically utilizing the Mercury PRO 11000 Hybrid Inverter paired with a 15.36kWh Lithium Iron Phosphate (LiFePO4) battery bank, this capacity is designed to sustain high-demand inductive loads while managing base resistive loads efficiently.

Operational Power Definition: kVA vs. kW

To accurately determine load capacity, the distinction between apparent power (kVA) and active power (kW) must be applied. The Mercury PRO 11000 operates at Unity Power Factor (PF 1.0), meaning 11kVA = 11kW real power. For comparison, some non-Mercury inverter models operate at PF 0.8-0.9, requiring derating calculations:

• Mercury PRO 11000 (PF 1.0): 11,000 VA = 11,000 Watts
• Standard Inverters (PF 0.9): 11,000 VA = 9,900 Watts
• Legacy Transformers (PF 0.8): 11,000 VA = 8,800 Watts
• Surge Power (5 seconds): ~22,000 Watts

This 11,000-watt continuous output ceiling allows for the simultaneous operation of heavy inductive motors and sensitive electronics. Unlike smaller 5.5kVA units which may operate at lower power factors (8.8kW max), the Mercury PRO 11000 delivers full 11kW capacity, providing the necessary headroom to manage Locked Rotor Amps (LRA) without triggering overload protection faults.

Recommended Inverter AC Units for 11kVA Systems

Not all air conditioners are compatible with solar inverter systems. Conventional (non-inverter) ACs draw 3-5x surge current at startup (Locked Rotor Amps) and will trip overload protection on an 11kVA system when multiple units start simultaneously. Inverter ACs are mandatory for multi-unit operation on this capacity. Learn more about AC efficiency ratings from the U.S. Department of Energy.

Why Inverter ACs Are Essential:

• Soft Start Technology: Variable Frequency Drives (VFD) ramp the compressor from 0Hz to operating speed over 30-60 seconds, eliminating the 30-50A inrush current spike that crashes standard inverters.
• Power Throttling: Once the set temperature is reached, inverter ACs drop to 20-40% capacity (300-500W for a 1.5HP unit), whereas conventional ACs cycle on/off at full power, creating voltage instability.
• Power Factor Correction: Inverter models maintain PF >0.95, reducing reactive power strain on the inverter’s capacity.

Recommended Specifications (1.5HP Units):

• Capacity: 12,000 BTU (1.5HP) — Optimal for 16-25m² rooms
• Running Current: ≤5.5A at 220V (~1,200W max input)
• SEER Rating: ≥18 (Seasonal Energy Efficiency Ratio — higher means lower wattage at full load)
• Voltage Range: 160V-260V operation (essential for Nigerian grid fluctuations)
• Refrigerant: R32 or R410A (environmentally compliant, efficient)

Verified Compatible Brands (Nigerian Market):

• LG Dual Inverter: Model TS-H1265DA1 (1.5HP) — Dual rotary compressor reduces vibration and starting current to 1.2x running amps. Average consumption: 450W at steady state.
• Haier Thermocool Genius: HSU-12TESN-01 (1.5HP) — Wide voltage range (160V-264V), T3 tropicalized compressor for 50°C ambient operation. Nigerian service centers widely available.
• Samsung WindFree: AR12TSHZAWK (1.5HP) — “WindFree” mode drops consumption to 280W by dispersing air through micro-holes after cooling. Ideal for overnight battery operation.
• Midea Mission: MSMB-12CR (1.5HP) — Budget-friendly inverter with high ambient temperature tolerance. Running wattage: ~1,050W.
• Hisense Expert: AS-12TW4RYRDA01 (1.5HP) — Smart inverter with I-Feel sensor; operates efficiently at low voltages common in rural grids.

Critical Installation Note: When installing three 1.5HP inverter ACs on an 11kVA system, stagger the startup sequence. Program each unit to start 2-3 minutes apart (using the units’ built-in timers) to prevent simultaneous ramp-up currents from briefly exceeding the inverter’s 11kW continuous rating, even though surge capacity is 22kW.

Inductive Load Analysis: Air Conditioning and Pumps

The primary query regarding this capacity involves air conditioning. An 11kVA inverter can comfortably power:

• Three (3) units of 1.5HP Inverter Air Conditioners: Modern inverter compressors utilize Variable Frequency Drives (VFD) to ramp up speed, eliminating the massive inrush current spikes associated with non-inverter ACs. A 1.5HP inverter AC typically draws 1,100W to 1,200W at full load but stabilizes at 300W-600W during normal operation.
• One (1) 1.5HP Pumping Machine: Water pumps are direct-on-line (DOL) inductive loads. A 1.5HP pump runs at approximately 1,100W to 1,200W but requires a startup surge of 3x-5x that value. The 11kVA inverter’s surge buffer handles this transient spike provided it does not coincide exactly with other high-surge events.

Detailed Load Profile Table

The following engineering breakdown illustrates a viable load scenario for an 11kVA system operating at 70% capacity (recommended for longevity):

In this scenario, the total running load is approximately 6.26kW, which is roughly 57% of the inverter’s 11kW capacity. This leaves significant headroom (approx. 4.7kW) for transient spikes, additional intermittent loads (microwave, washing machine), and battery charging current.

Energy Storage Dynamics: 15.36kWh Lithium Bank

The runtime of the system is dictated by the battery bank, not the inverter capacity. The specified 15.36kWh Lithium battery bank typically consists of three 5.12kWh (48V 100Ah) modules in parallel. Unlike Lead-Acid batteries (VRLA/AGM), which are limited to 50% Depth of Discharge (DoD) to prevent sulfation, Lithium Iron Phosphate (LiFePO4) batteries allow for 80% to 90% DoD.

Runtime Calculation Logic:
Total Energy: 15,360 Wh
Usable Energy (80% DoD): 12,288 Wh
Inverter Efficiency (DC to AC conversion): ~93%
Net AC Energy Available: ~11,428 Wh

Autonomy Scenarios (Continuous Load):

• Heavy Load (Running 3 ACs + All Appliances – 6,260W):
  12,288Wh / 6,260W = ~1.96 Hours.
  Note: This assumes all loads run at max power continuously—rare in practice.
• Moderate Load (1 AC + Fridge + Lights + TV – 2,660W):
  12,288Wh / 2,660W = ~4.6 Hours.
• Essential Load (Lights, Fans, TV only – 600W):
  12,288Wh / 600W = ~20.5 Hours.

Real-World Runtime: Intermittent Load Management

The autonomy calculations above assume continuous operation—all appliances running simultaneously without stopping. In reality, backup time is typically 2-3x longer because electrical loads operate on duty cycles and can be time-shifted.

Understanding Duty Cycles:

• Air Conditioners: Inverter ACs cycle on and off based on thermostat settings. A unit rated at 1,200W may only run 40-50% of the time once the room reaches temperature, consuming an average of 480-600W instead of the full rated load.
• Refrigerators/Freezers: Compressors typically run 20-30% of the time (8-12 minutes per hour). A 250W fridge averages only 50-75W over a 24-hour period.
• Water Pumping: The 1.5HP pump drawing 1,200W does not run 24/7. Most residential water systems operate 30-60 minutes total per day (filling tanks, showers, kitchen use). This changes the daily energy requirement from 28.8kWh (if continuous) to just 0.6-1.2kWh.

Load Shifting Strategy:

The Mercury PRO 11000’s 150A MPPT controller allows you to run heavy daytime loads directly from solar while simultaneously charging batteries. This extends nighttime autonomy significantly:

• Daytime (Solar Hours): Run water pumping, washing machines, ironing, and heavy AC usage while the sun is shining. The solar array powers these loads directly, preserving battery charge for nighttime.
• Nighttime (Battery Mode): With heavy intermittent loads completed during the day, nighttime consumption drops to base loads only—lights, fans, entertainment, and sleeping ACs at low power.

Revised Real-World Autonomy:

With smart load management (pumping done by day, ACs cycling 50% duty, fridges cycling 25%):

• Effective Night Load: 6,260W × 0.6 (duty cycle factor) = ~3,760W average
• Actual Backup Time: 12,288Wh / 3,760W = ~3.3 Hours (vs. 1.96 hours continuous)
• Conservative Daily Runtime: If heavy loads are restricted to 4 hours of solar charging time, the system can provide 8-12 hours of mixed-light backup through the night on a single charge.

Solar Integration and Charging Specs

To sustain an 11kVA system without heavy reliance on the grid or generators, the Maximum Power Point Tracking (MPPT) charge controller capability is paramount. The Mercury PRO 11000 features dual MPPT trackers (27A × 2, max 5,500W per tracker) allowing for separate solar arrays.

Solar Sizing with Load Management:

To recharge a 15.36kWh bank from 20% to 100% (12.3kWh to replace) within 5 hours of peak sun while simultaneously powering daytime loads:

• Battery Charging Requirement: 12.3kWh ÷ 5h = 2.46kW
• Simultaneous Daytime Load: 6.26kW average
• Total Array Needed: (2.46kW + 6.26kW) ÷ 0.8 efficiency = ~10.9kW minimum

Therefore, an array of roughly 20-24 × 500W Panels (Total 10kW-12kW) is the practical minimum to achieve energy independence. The PRO 11000 supports up to 11kW of PV input (5500W × 2 MPPTs), making it a tight but manageable fit. Heavy load shifting to peak sun hours (11am-2pm) ensures the array can both charge batteries and run appliances without grid fallback. Explore our complete solar solutions for tailored configurations.

ROI Analysis: 11kVA Solar Hybrid vs. Diesel Generator

With the current price of Automotive Gas Oil (Diesel) fixed at 998 NGN/Litre, the operational expenditure (OPEX) of a comparable 10kVA-15kVA diesel generator is financially punitive. Reference diesel generator fuel consumption charts for detailed consumption rates.

Generator OPEX Math:
A 10kVA diesel generator consumes roughly 2.5 Litres/Hour at 75% load.
Cost per Hour: 2.5L x 998 NGN = 2,495 NGN/Hour.
Daily Run (8 Hours): 19,960 NGN.
Monthly Run (24 Days): 479,040 NGN.

Grid Cost Comparison (Band A):
Grid Tariff: ~209 NGN/kWh.
To supply the equivalent 8 hours x 6.26kW load = 50.08kWh.
Daily Grid Cost: 50.08kWh x 209 NGN = 10,467 NGN.

Solar Hybrid Cost:
Solar energy is effectively zero marginal cost after CAPEX. Even if grid charging is used to top up batteries, the cost is significantly lower than diesel generation. The Return on Investment (ROI) for an 11kVA system replacing a primary diesel generator is typically realized within 12-18 months based on current fuel prices.

Electrical Installation Requirements

Deploying an 11kVA system requires adherence to strict electrical standards to ensure safety and performance:

• Cabling: DC cables from battery to inverter must handle high amperage. For a 48V system delivering 11kW, the current can exceed 230 Amps (11,000W ÷ 48V = 229A). This necessitates 70mm² or 95mm² copper cables with properly crimped lugs.
• Protection: A DC Circuit Breaker (typically 250A) and AC Input/Output breakers (63A) are mandatory.
• Changeover: An automatic changeover is usually internal to the hybrid inverter, but an external bypass switch is required for maintenance isolation.
• Earthing: Proper grounding is critical for the surge protection devices (SPD) within the inverter to function against lightning strikes or grid surges.

Conclusion

The question “what can 11kVA inverter power” resolves to a comprehensive solution for modern, energy-intensive residential or small commercial setups. It supports multiple air conditioners, refrigeration, and pumping systems simultaneously, provided the battery bank is sized correctly for the desired autonomy. With intelligent load management—shifting water pumping and heavy appliance use to solar hours, and understanding that duty cycles reduce actual consumption by 40-60%—the 15.36kWh storage system can deliver 8-12 hours of reliable backup rather than the 2 hours suggested by continuous-load math. The 11kVA Mercury PRO 11000 shifts from a mere backup device to a primary energy management system, drastically reducing reliance on expensive fossil fuel generation.
